Cab Interior Drawings
Elevator Full-Set Submittal Drawings, Shop Drawings, Singular Cab Component Drawings.
2 to 12 Page PDF Document - Typical Drawing set includes:
Cover Page - Project Information, Material finishes.
Plan Views - 3 to 4 pages of Floor, Lower Panels, Handrail Height, Upper Panels, and Reflected Ceiling Page.
Elevations - 2 to 3 pages of Rear Wall, Side Wall, Front Wall (if necessary).
Detail Sections - 2 to 3 pages of Full and Half Scale Detail and Vertical Sections of specific components
Plan View Drawings at Floor Layout and Raised Base, Lower Raised Panels, Chair Rail and Handrail, and Upper Raised Panels.
AutoCAD generated Plan Views from the Ground up to the Drop Ceiling. Designed to provide project layout, scope-of-work, and necessary measurements for accurate Fabrication and proper Field Installation.
6-Panel Drop Ceiling with Down-Lights
Whether it’s a Drop Ceiling with LED Lighting, Direct Canopy-mounted LED Light Panels, or a Diffuser Light Panel Drop Ceiling, your Elevator Ceiling and Lighting needs can be drafted with expertise and precision.
Perimeter Lit LED Drop Ceiling with reflector channel
Rear and Side Wall Elevations
Cab Interior Elevation Drawings from Floor to Canopy. Displays all necessary dimensions, layouts, and Material Details and Specifications.
Detail Sections
Full-Scale Detail Sections - Lower and Upper Raised Panels
Full-Scale Detail Sections of Raised Panels, Reveals, Panel Trim, and Z-Clip Panel Mounting Hardware. Also shown for Manufacturing and Installation guide includes Material Substrate and Finish Thickness and Blocking as necessary.
Vertical Sections

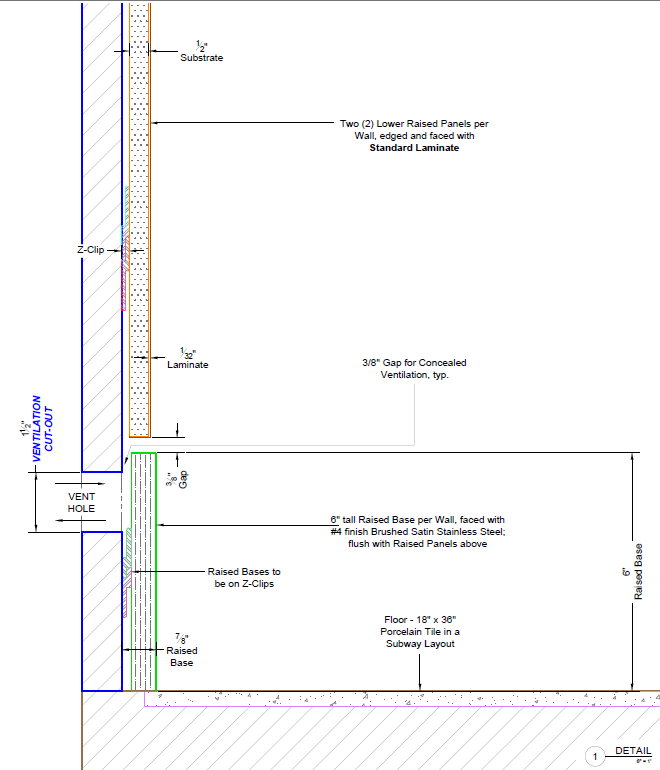

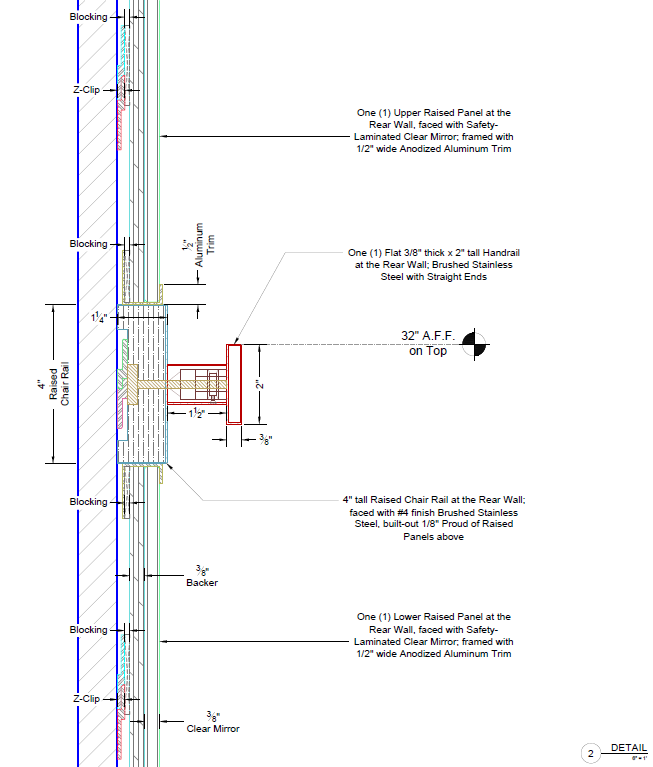

Half-Scale Vertical Detail Sections at Raised Base and Lower Ventilation, Handrail Height, and Drop Ceiling
Vertical Detail Sections of Cab Interior Components from Floor to Canopy. Provides Cab Ventilation and Ceiling Height measurements.
